Newest Technology Bifacial Dual Glass Monocrstalline Module Solar Panel 320W 450W

Model Number
320W-455W
Cell size
166mmx166mm
Type
PERC, Half Cell, Bifacial, Double-glass, Half Cell
Panel Dimensions
2096*1039*30mm
Panel Efficiency
420W~460W
Certificate
CE
Warranty
5years
Project Type
Design, Supply And Installation.
Application
Solar Power System

Produt Details

Bifacial PERC mono solar panel 320W 450W solar cells solar panels

Bifacial PERC mono solar panel

Module Type	AS-6M 144-BHC-435W~455W
Maximum Power(Pmax)	435W	440W	445W	450W	455W
Open Circuit Voltage(Voc)	49.6V	49.8V	50.0V	50.2V	50.4V
Short Circuit Current(Is c)	11.10A	11.16A	11.22A	11.28A	11.34A
Voltage at Maximum Power(Vmp)	41.2V	41.4V	41.6V	41.8V	42.0V
Current at Maximum Power(Imp)	10.56A	10.63A	10.70A	10.77A	10.84A
Module Eff ciency(%)	20.0	20.2	20.4	20.7	20.9
Operating Temperature	-40°C to+85℃
Maximum System Voltage	1500V(IEC)
Fire Resistance Rating	Class C
Maximum Series Fuse Rating	20A
*STC	Irradiance1000W/m², Cell temperature 25C, AM 1.5; Tolerance of Pmax:±3%; Measurement Tolerance:±3%

Bifaical Solar Panel Advantage：

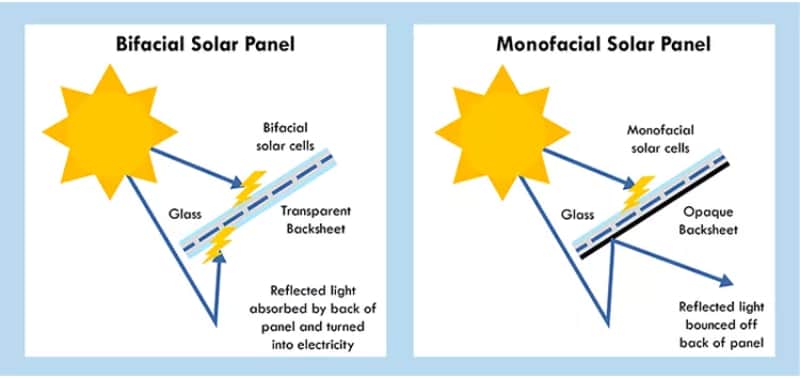

Compared with mono-facial solar panel, bifacial solar panel can generateelectricity under the direct sunlight on the front and the reflected sunlighton the back.

solar panel

If you are considering installing bifacial solar panels for your home , please consider allthese issues before buying
If you only check one of them , the bifacial solar panel installation will work for you
If you choose multiple options , then bifacial is your best choice !

A . Are you thinking of installing a solar system on the roof ?
B . Do you want to build a sun room to enjoy the warm sun in winter
C. Do you want to build an awning in the yard ?
D. My roof happens to be white or light-colored , I would also like to paint these new colors ?

Since the double glass bifacial solar panel occupies less space than the conventionalsingle-sided , it does not need to pass more land to obtain greater power generation , butdoes require a light-colored surface to obtain the best performance .
