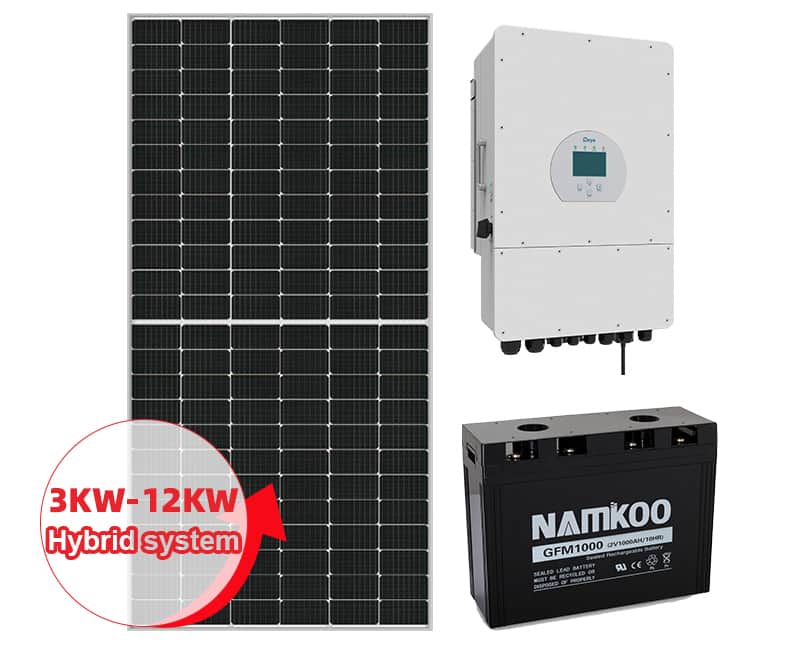

Complete design hybrid home solar power system 5kw 10kw 20kw

Model Number
10kw Hybrid system
Application
Home, Home Commercial Industrial
Solar Panel Type
Monocrystalline Silicon
Battery Type
Lead-Acid, Lithium Ion
Controller Type
MPPT
Mounting Type
Ground Mounting
Load Power (W)
8KW, 6KW, 10KW, 12KW
Output Voltage (V)
110/120/220/240Vac; 220/230/380/400Vac etc
Output Frequency
50/60HZ
Work Time (h)
24hours/day

Produt Details

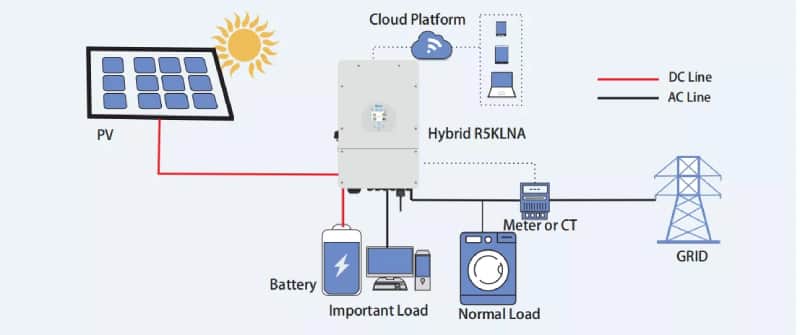

A Hybrid Solar PV Systemon-grid Solar With Battery Storage

Hybrid energy storage solar system is a solar system, suitable for a place where is no grid network or grid power is not stable.This solar can be described as off-grid solar system with utility backup power, or grid-tied solar system with extra battery storage.

hybrid solar system

Hybrid Energy Storage System Configuration
Item
1	Solar Panel 455W	10 Pieces	18 Pieces
2	Conbiner Box	1 Piece	1 Piece	1 Piece	1 Piece
3	Solar Battery	10kwh(1 set)	16kwh(1 set)	20kwh(1 set)	24kwh(1 set)
4	Hybrid Inverter	5kva(1 pc)	8kva(1 pc)	10kva(1 pc)	12kva(1 pc)
5	Mounting Support	1 set	1 set	1 set	1 set
6	4mm PV cable	200M	400M	400M	400M
7	PV Connectors	4 Pairs	8 Pairs	12 Pairs	16 Pairs
8	Solar Installation tools	1 Set	1 Set	1 Set	1 Set

The above system configuration forinitial designing, the system configuration are subject to changing depends on your final Installation conditions and requirements.
For more details, please send your inquiry to Sunrover Team. Thank you!

hybrid solar system

Solar Panels:

Optional Mono/Poly Blue/Black Panels
High Efficiency with PERC panels available
25 years warranty with 80% power output
PID Resistant,High salt and ammonia resistance.

MPPT Controller & Inverter:

LCD Screen Knock Setting Method
IP65 protection
Integrated DC disconnect switch
High efficiency of 97.5% delivery one more energy

Battery:

2V 12V 48V
GEL/AGM Type, Lithium Powerwall Batteries optional
With matched BMS communication protection
Powerwall Battery for convenient installation

Mounting Structure:

Residential roof ( Pitched roof )
Commercial roof ( Flat roof & workshop roof )
Ground solar mounting system
Vertical wall solar mounting system
All aluminum structure solar mounting system
Car parking solar mounting system

Project Case:

Solar System Packing & Delivery:

solar system packing

Namkoo Company Profile:

Namkoo

As a leader in solar power station, NAMKOO POWER is committed to building high-quality solar power station and setting up industry benchmarks, providing users quality services and safely Tailor-made engineering solutions as well as money for a long time. We provide systematic bank financing plan and full range of insurance for each customer to protect their income.

NAMKOO POWER adheres to the goal of building a quality power station. Through global channels, technological means and continuous research and development innovation capabilities, NAMKOO POWER strives to make greater contributions to the development of global clean energy, the improvement of people's quality of life, and the construction of blue sky.
