50W 50AH All In One PWM Mini Generator

Power Source
Solar Panel
Battery Type
Lead-Acid, Lithium Ion
Inverter Type
Pure Sine Wave
Controller Type
PWM
Battery Capacity
50AH
DC12V
5 output ports
DC 5VUSB
2USB output port (max 3A)
Charge current
10A/12V
Rated power
50W
Output wave
Pure sine wave

Produt Details

Portable Solar Power Bank Energy System DL 50W 50AH All In One PWM Mini Generator

Mini Solar DC system

Model	DL-50AH
Solar panel	Type	Mono or poly A grade
Solar panel	Power	Maximum 50w
Solar charging controller	Control way	High efficiency PWM
	Charging current	10A/12V
	Protection	Protection of the over charge、over discharge、short circuit、over load
	Voltage of over charge protection	14.3V
	Voltage of promoting charging	14.0V
	Float charging voltage	13.8V
	Over discharge protection	10.5V

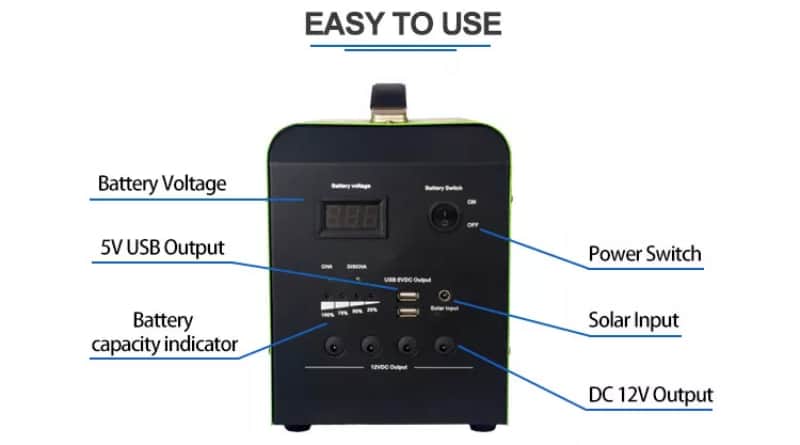

	LED display	Indication of charging,load and battery capacity
Battery	Battery type	Deep cycle lead-acid battery with free maintenance
Battery	Battery capacity	12V/50AH
DC output	Max output power	60W（12V，5A）
	DC12V	5pcs outlet
	DC5VUSB	2pcs USB output(MAX.2A)
Size（mm）		275175255

Mini Solar DC system

System introduction：

This product uses portable design, built-in battery and solar power controller, which is dedicated to supply the power to small power DC load ;Solar controller process the sample of the battery terminal voltage, discharge current, environment temperature, involving the battery capacity parameters through the computer chips. Through the special control model calculation, implementation conforms to the characteristics of battery discharge rate, temperature compensation correction of high efficiency, high control accuracy, and adopt the efficient PWM battery charging mode, which can ensure the battery work in the best state, in order to greatly extend the service life of battery.System comes with 12 VDC or 5 VDC output terminal, with short circuit, overload, unique reverse, full of, discharge automatically shut off, and restore full function protection measures;Detailed charging indicator, battery status, load, and various fault indicator.

Mini Solar DC system

Main features：

1, the single chip microcomputer intelligent control, optimize the SOC algorithm.
2, the built-in temperature sensor, which can effectively increase the built-in battery charging efficiency.
3, with the charge and discharge, electronic short circuit protection, overload protection, automatic control for the protection of the unique reverse.
4, main circuit adopted tandem PWM charging, which made the charging circuit of voltage loss than using diode charging circuit to reduce the nearly half, charging efficiency is higher 3%-6% than the non-PWM , increases the utilization of time.
5, put the ascension of charging, normal straight charger, floating automatic control method make the system have a longer service life.
6, intuitive digital pipe + LED display system.
