Deye Hybrid Solar Inverter Three Phase 8kw 10kw 12kw

  • Brand Name

    Deye
  • Model Number

    SUN-8/10/12 K-SG04LP3-EU
  • Input Voltage

    160~800Vdc
  • Output Voltage

    220/380, 230/400Vac
  • Output Current

    45A
  • Output Frequency

    50/60Hz
  • Output Type

    Triple
  • Size

    422/658/281mm
  • Type

    DC/AC Inverters, Three Phase Inverters
  • Inverter Efficiency

    99.9%
  • Certificate

    CEI,VDE,NRS,IEC
  • Warranty

    5 YEARS
  • Weight

    45/33.6KG
  • Battery Type

    Lead-acid or Li-lon
  • Battery Voltage Range

    40~60V

Produt Details

Deye Three Phase Hybrid Inverter 5KW 6KW 8KW 10KW 12KW Solar Inverter with Battery

Deye Hybrid Inverter

Deye SUN-8/10/12K-SG04LP3-EU is brand new three phase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS,x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.

Model SUN-8K-SG04LP3 SUN-10K-SG04LP3 SUN-12K-SG04LP3
Battery Input Data
Battery Type Lead-acid or Li-lon
Battery Voltage Range (V) 40~60V
Max. Charging Current (A) 190A 210A 240A
Max. Discharging Current (A) 190A 210A 240A
Charging Curve 3 Stages / Equalization
External Temperature Sensor Optional
Charging Strategy for Li-Ion Battery  Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W) 10400W 13000W 15600W
Rated PV Input Voltage (V)  550V (150V~800V)
MPPT Range (V)  200V-650V
Start-up Voltage (V) 160V
Full Load DC Voltage Range 350-650
Rated AC Output and UPS Power (W) 8000W 10000W 12000W
Max. AC Output Power (W) 8800W 11000W 12000W
AC Output Rated Current (A) 12A 15A 18A
Max. AC Current (A) 18A 23A 27A
Max. Continuous AC Passthrough (A) 50A
Output Frequency and Voltage 50/60Hz; 230/400Vac (Three phase)
Protection

PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor

Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Output Over Voltage

Operating Temperature Range (℃ )  -25~60℃ , >45℃ Derating
Cooling Smart cooling
Communication with BMS RS485; CAN
Weight (kg) 36.8
Size (mm) 422W×658H×281D
Protection Degree IP65
Installation Style Wall-mounted
Warranty 5 years

Why Choose Deye Solar inverters?

1.Deye Solar inverters have been installed in more than 60 countries (e.g. Australia, Brazil, India, the UK, Germany,
Italy,Belgium, Spain, Netherland, France, Vietnam, South Africa, Pakistan, Japan, Korea, China etc.) with currently 9 own
subsidiaries in Shenzhen, Wuxi, Dongguan, Xinyang, Australia, India, Germany, UK and Italy.
2.Your Best Choice For AC Storage Hybrid Solutions and String Inverters
3.All Deye Solar inverters can be found in PV Solar system
4.All Deye Solar inverters and distributors are insured by US CHUBB Insurance corporation company
5.All Deye Solar inverters are equipped with Standard WiFi communication
6.Deye Solar inverters are equipped with 25-year data storage capabiliity (Internal SD Card)

Deye Solar inverter

The following illustration shows basic application of this inverter. It also includes following devices to have a Complete running system.

- Generator or Utility

- PV modules

Consult with your solar system integrator for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as
refrigerator and air conditioner.

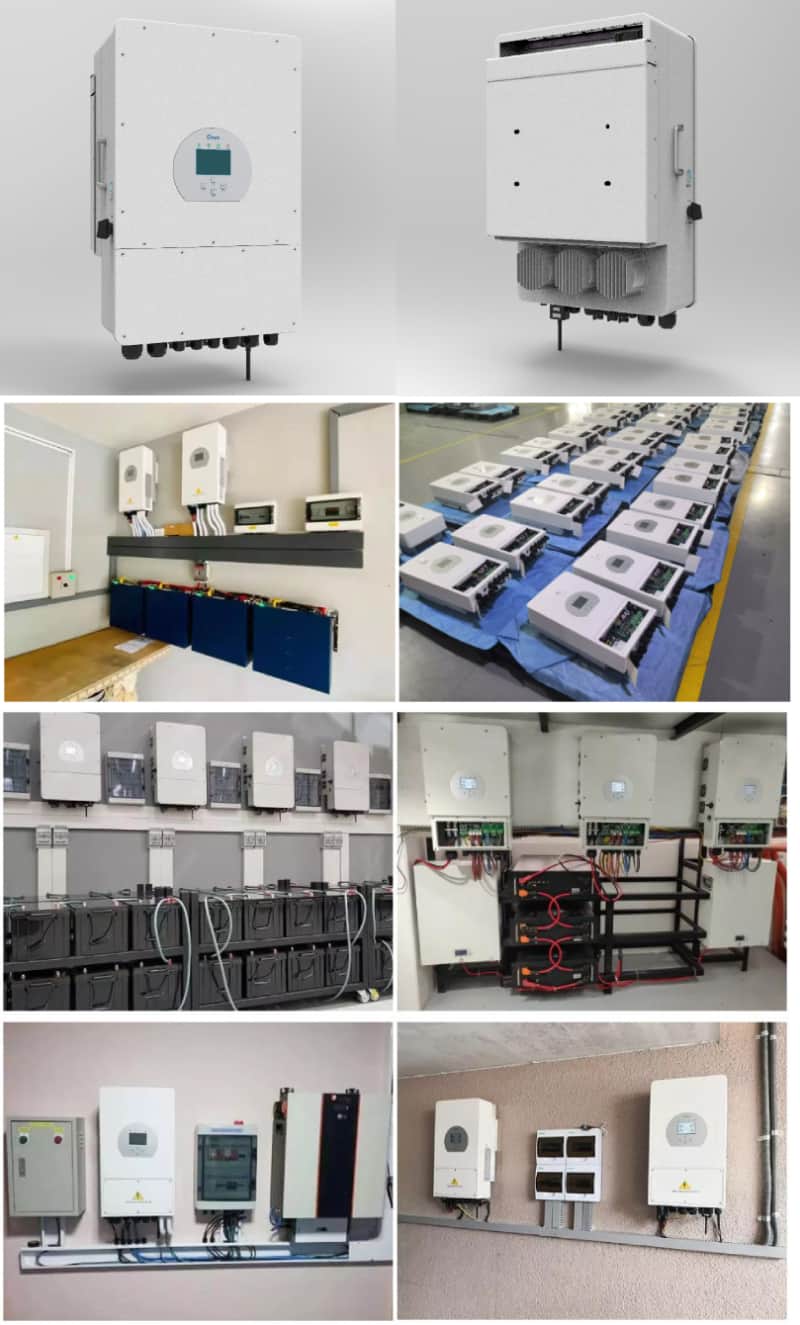

Projects cases:

Deye solar inverter

Product packaging:

Solar inverter packing

Company Profile:

Namkoo solar

As a leader in solar power station, NAMKOO POWER is committed to building high-quality solar power station and setting up industry benchmarks, providing users quality services and safely Tailor-made engineering solutions as well as money for a long time.

We provide systematic bank financing plan and full range of insurance for each customer to protect their income.

NAMKOO POWER adheres to the goal of building a quality power station. Through global channels, technological means and continuous research and development innovation capabilities, NAMKOO POWER strives to make greater contributions to the development of global clean energy, the improvement of people's quality of life, and the construction of blue sky.
