ESS 500KW 1000KW 1MW BD500-630kW-M Energy Storage Converter
  • ESS 500KW 1000KW 1MW BD500-630kW-M Energy Storage Converter
  • ESS 500KW 1000KW 1MW BD500-630kW-M Energy Storage Converter
  • ESS 500KW 1000KW 1MW BD500-630kW-M Energy Storage Converter
  • ESS 500KW 1000KW 1MW BD500-630kW-M Energy Storage Converter

ESS 500KW 1000KW 1MW BD500-630kW-M Energy Storage Converter

  • Input Voltage

    600~900V DC,400V AC
  • Output Voltage

    320~460V
  • Output Current

    722~800A,909~1000A
  • Output Frequency

    50/60Hz
  • Output Type

    Three Phase
  • Size

    1200*800*2050mm
  • Type

    DC/AC Inverters
  • Inverter Efficiency

    98.7%
  • Certificate

    CE, CGC, TUV, L1HVRT
  • Warranty

    5 Years
  • Weight

    625~3325KG

Produt Details

BD 30-500KW Automatic On/Off Grid Transfer Three Phase Hybrid Inverter

Energy Storage Converter



Datasheet BD500KTR-M BD630KTR-M
AC (On-grid)
Max.Output Power 550kVA 693KVA
Rated Power 500kw 630kw
Rated Voltage 400V,3W+PE
Operatingvoltage Range 320V~460V
Rated Current 722A 909A
Max.Output Current 800A 1000A
Rated Frequency 50Hz/60Hz
THDi <3%
AC (off-grid)
Rated Voltage 400V
Rated Frequency 50Hz/60Hz
Overload Capability 110% long-term
HDu <1%linear;<5%nonlinear
Battery Voltage Range 600V~900V

Energy Storage Converter

Intelligent Simple O&M:
* Highest power density.Maximum efficiency:98.7%

* Low power consumption fan,with intelligent temperature control system
* With grid-connected charging and discharging off-grid independent inverter function
  Flexible Abundant configuration:
* Wide battery voltage range, support multiple battery access
* Reactive power, active power adjustable
* Off-grid cold start function, support multi-machine parallel function
* Integrated design for easy transportation and integration
* SupportRS485,CANcommunication mode, can accept BMS instruction in real time:
  Reliable Worry free
* High performance DSP,optimized control circuit design, high reliable system
* Patented control detection algorithm to ensure equipment failure diagnose
* AC/DC dual backup for auxiliary power supply

solar system

hybrid solar 1mw

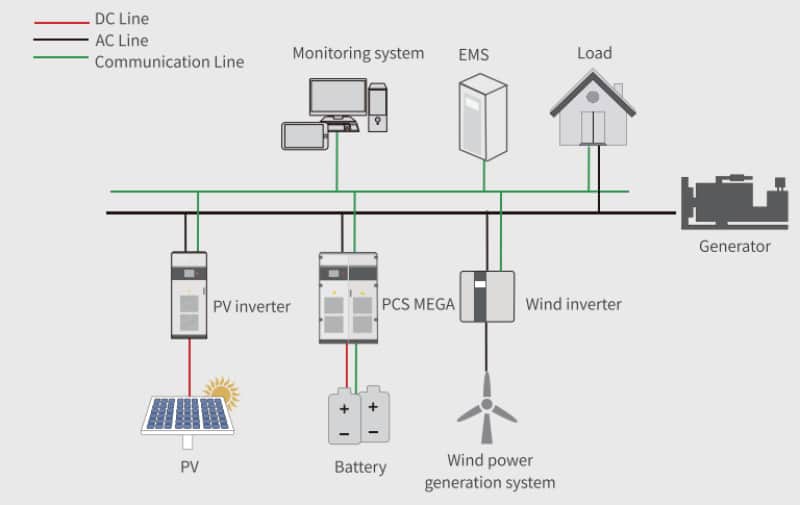

Features of Namkoo Energy Storage Container Energy Storage System
1. High degree of system integration, integrated battery management system, PCS, temperature control system, fire control system,
access control system, data monitoring system, AC and DC power distribution, lighting system, etc.
2. Customizable design to meet different customer needs. 3. Third-level BMS system architecture, safe and reliable.
4. The charging mode includes pre-charging, constant-current charging, uniform charging and floating charging.
5. The energy storage system has perfect functions of communication, monitoring, management, control, early warning and
protection. It operates continuously and safely for a long time. It can detect the running state of the system through the upper
computer. It has abundant data analysis ability and emergency power supply function.

Factory:

solar factory

Project:

ess solar
