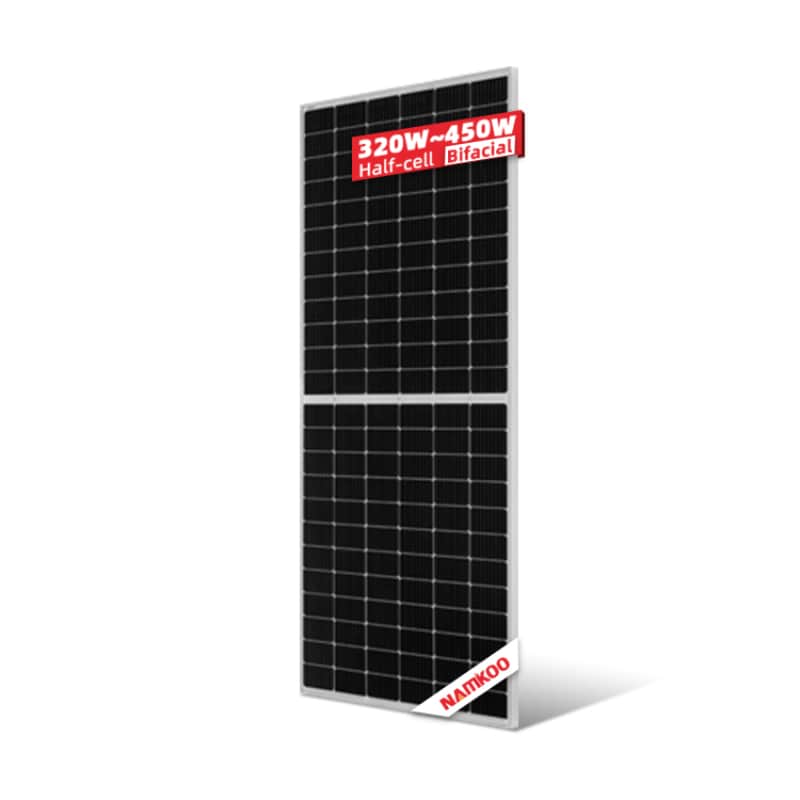

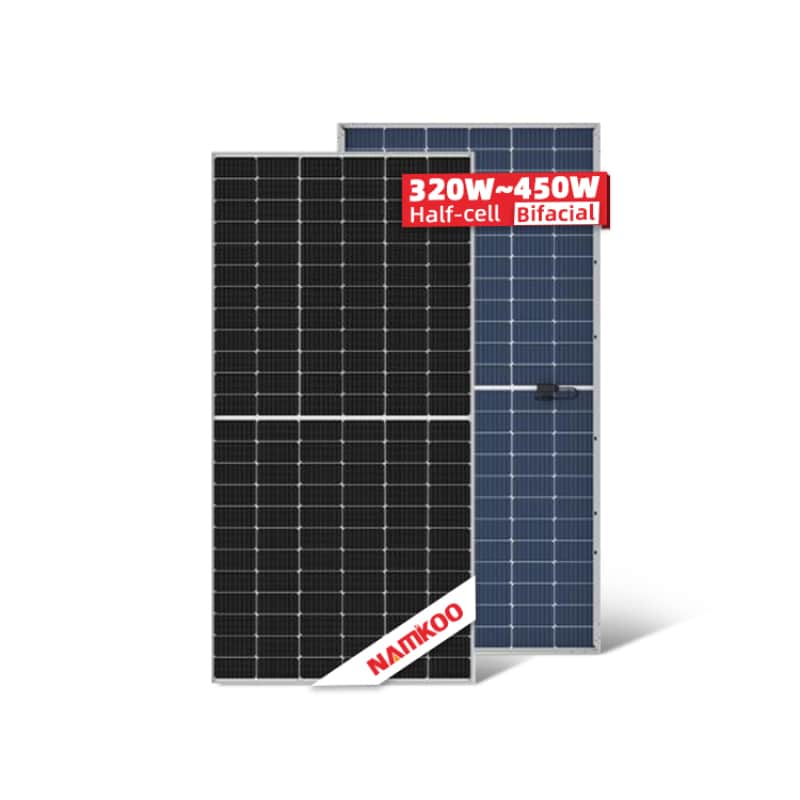

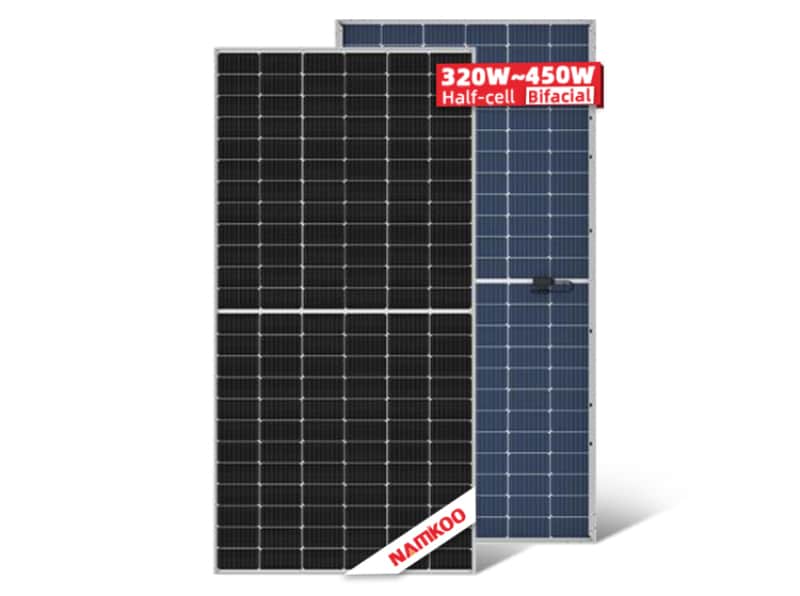

New goods bifacial 320w 450w trina solar panel bifacial dual glass for solar panel system
-
Model Number
320W-455W -
Cell Size
166mmx166mm -
Type
PERC, Half Cell, Bifacial, Double-Glass, Half Cell -
Panel Dimensions
2096*1039*30mm -
Panel Efficiency
420W~460W -
Certificate
CE -
Warranty
5years -
Project Type
Design, Supply And Installation. -
Application
Solar Power System
Produt Details
New Design Solar Panel Photovoltaic 335W 435W 455W Bifacial Photovoltaic Solar Panel
Namkoo brand quality but cheap price
Assembled with high-efficiency PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.
Half-cell design brings higer efficiency:
1.New cell string layout and split J-box location to reduce the energy loss casused by shading between modules
2. Low thermal certificates for greater energy production at high operating temperature
3. Low cell connection power loss due to half-cell layout (144 monocrystalline pv module)
| Module Type | AS-6M 144-BHC-435W~455W | ||||
| Maximum Power(Pmax) | 435W | 440W | 445W | 450W | 455W |
| Open Circuit Voltage(Voc) | 49.6V | 49.8V | 50.0V | 50.2V | 50.4V |
| Short Circuit Current(Is c) | 11.10A | 11.16A | 11.22A | 11.28A | 11.34A |
| Voltage at Maximum Power(Vmp) | 41.2V | 41.4V | 41.6V | 41.8V | 42.0V |
| Current at Maximum Power(Imp) | 10.56A | 10.63A | 10.70A | 10.77A | 10.84A |
| Module Eff ciency(%) | 20.0 | 20.2 | 20.4 | 20.7 | 20.9 |
| Operating Temperature | -40°C to+85℃ | ||||
| Maximum System Voltage | 1500V(IEC) | ||||
| Fire Resistance Rating | Class C | ||||
| Maximum Series Fuse Rating | 20A | ||||
| *STC | Irradiance1000W/m², Cell temperature 25C, AM 1.5; Tolerance of Pmax:±3%; Measurement Tolerance:±3% | ||||

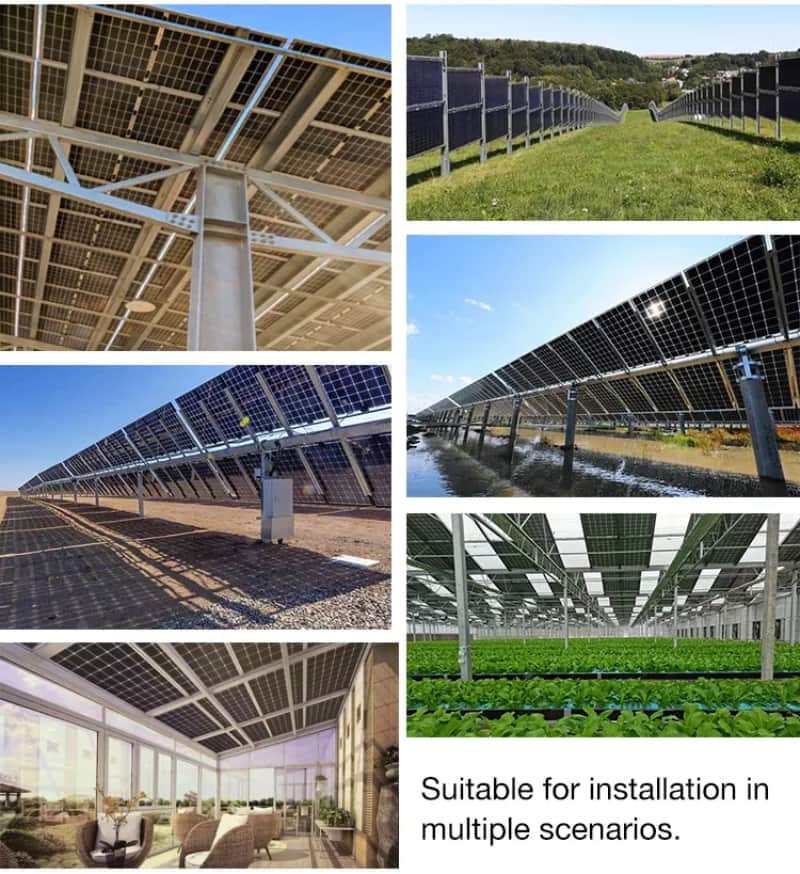

Namkoo bifacial solar panel Project:

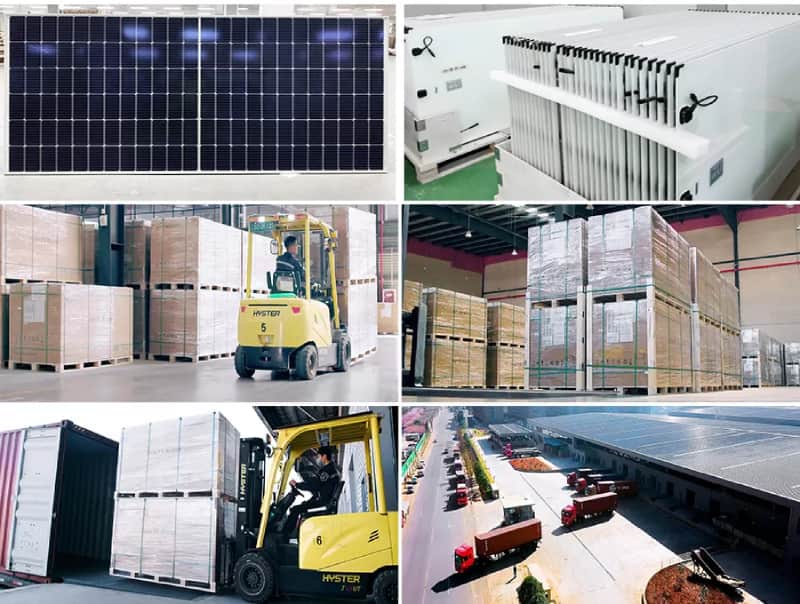

Bifacial solar panel packing & delivery:
Namkoo company profile:
As a leader in solar power station, NAMKOO POWER is committed to building high-quality solar power station and setting up industry benchmarks, providing users quality services and safely Tailor-made engineering solutions as well as money for a long time.
We provide systematic bank financing plan and full range of insurance for each customer to protect their income.
NAMKOO POWER adheres to the goal of building a quality power station. Through global channels, technological means and continuous research and development innovation capabilities, NAMKOO POWER strives to make greater contributions to the development of global clean energy, the improvement of people's quality of life, and the construction of blue sky.
