Durable 540W 450W 300W PERC off grid hom use TUV mono cell solar system energy solar panel
  • Durable 540W 450W 300W PERC off grid hom use TUV mono cell solar system energy solar panel
  • Durable 540W 450W 300W PERC off grid hom use TUV mono cell solar system energy solar panel
  • Durable 540W 450W 300W PERC off grid hom use TUV mono cell solar system energy solar panel
  • Durable 540W 450W 300W PERC off grid hom use TUV mono cell solar system energy solar panel
  • Durable 540W 450W 300W PERC off grid hom use TUV mono cell solar system energy solar panel

Durable 540W 450W 300W PERC off grid hom use TUV mono cell solar system energy solar panel

  • Cell size

    156.75mmx156.75mm
  • Type

    PERC, Double-glass, HJT, PERC,All Black, Black Frame
  • Panel Dimensions

    2279x1134x35mm
  • Panel Efficiency

    540w, >20%
  • Certificate

    TUV/IEC61215/IEC61730/CEC/CE/PID/ISO
  • Warranty

    25 years
  • Product name

    Mono Solar Panel
  • Application

    Solar Power System Home

Produt Details

Factory Wholesale 540W 450W 300W High-Efficiency Module Mono Solar Panel

mono solar panel

Model 300W 370W 450W 540W
Open Circuit Voltage(V) 36 41.5 49.6 49.55
Operating Voltage(V) 30 34.2 41.0 41.62
Short Circuit Current(A) 11.2 11.37 11.53 13.89
Operating Current(A) 10 10.85 10.98 12.98
Module Efficiency(%) 18.7 19.18 22.3 22.5
Max system voltage 1500V(IEC)
Power Tolerance 0~+5W
Max. Fuse Rated Current 25A
Standard Test Condition(STC) lrradiance 1000 W/m 2 , module temperature 25 °C, AM=1.5;Tolerances of Pmax, Voc and Isc are all within +/- 5%.

solar panel

mono solar panel

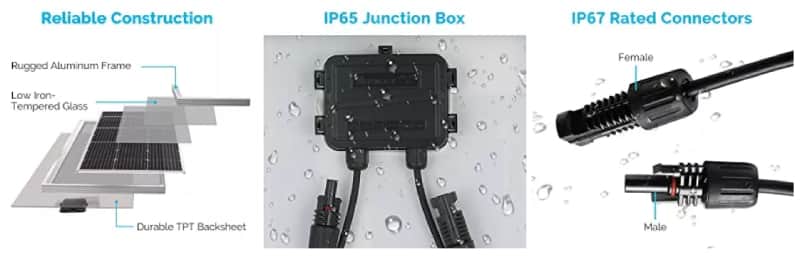

Solar Panel Glass :
* High-transmittance and low reflection
* Inspection:GB15763.2-2005.ISO9050
* High solar transmittance
* High mechanical strength
* High flatness

EVA:
*Excellent durability, such as weather resistance, high-temperature and high humidity resistance, UV light resistance.
*Excellent light transmittance and transparency
*Inactivation and harmless in solar cells during processing
*Have a high cross linking rate after lamination.
*Good encapsulating properties

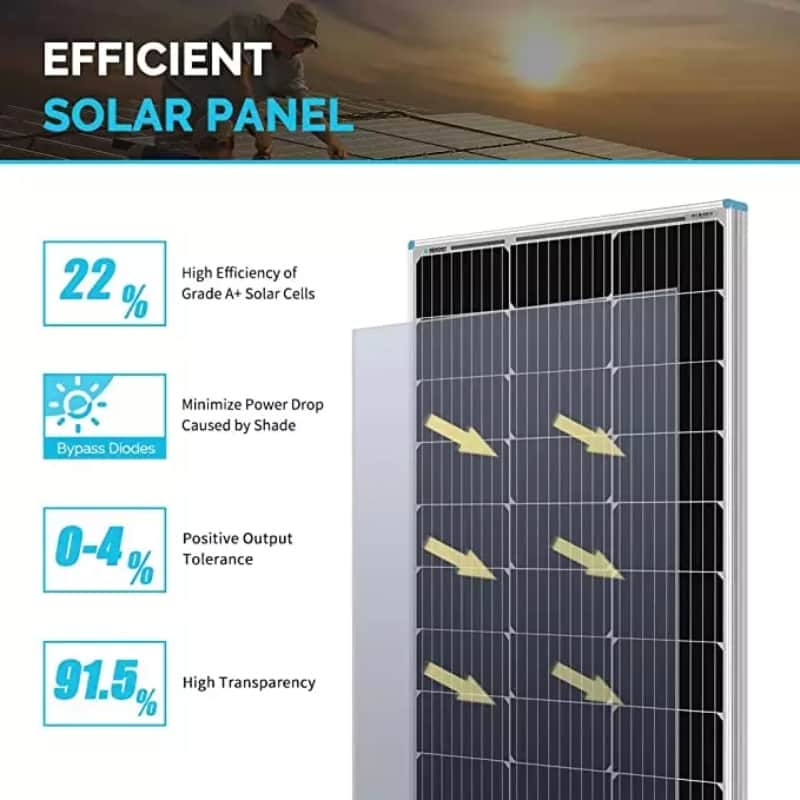

Solar Cells:
* High output-power: conversation efficiency is 18%-22%
* High shunt-resistance: adapt the several environmental conditions.
* Bypass diode minimizes the power drop by shade
* Excellent low light effect
* Low breakage rate

Back Sheet:
*High Weather Resistance
*High Security
*High insulation
*High Water Vapor Resistance
*High Adhesion
*High Compatibility

Frame:
* Aluminium extrusion profile with prompt delivery
* Available in customized surface finish
* Excellent material for smooth and subtle edges
* Extrusion for construction and other industrial purposes
* Thickness variable according special request

Junction Box:
* High current and voltage carrying capacity
* Simple, quick and safe effective field assembly
* IP 68 it can be used in the outdoor iron environment
* Expansion connector are available for future requirement
* Double permanent connection are adapted for all of the connecting.

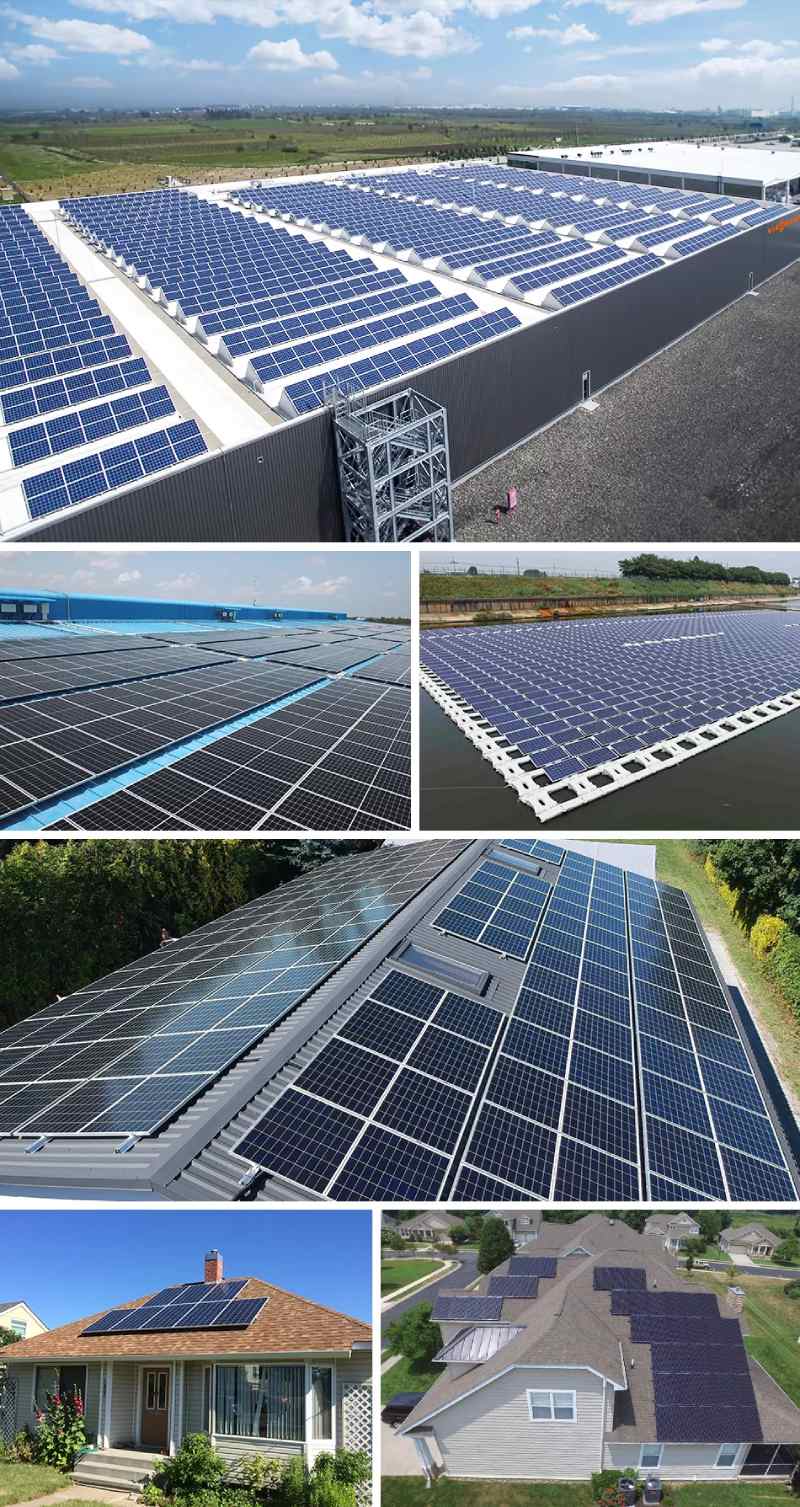

Projects:

solar panel projects

Namkoo always insist on using top reliable materials and superior advanced manufacturing process to produce Class A solar panels.
Our factory can work for various advanced technology production requirements. The annual production capacity of solar panels has reached 2GW. The advanced automatic production line opened a new era for capacity, and achieve the transition from manufacturing to intelligent manufacturing.

With high quality of the products, we own a high reputation among customers. In philosophy of quality, reputation, honesty, mutual benefit, we will provide high-quality and efficient services no matter what size of the clients and how long we cooperate. Full of confidence and enthusiasm, we are willing to work with you to create a new brilliance.
