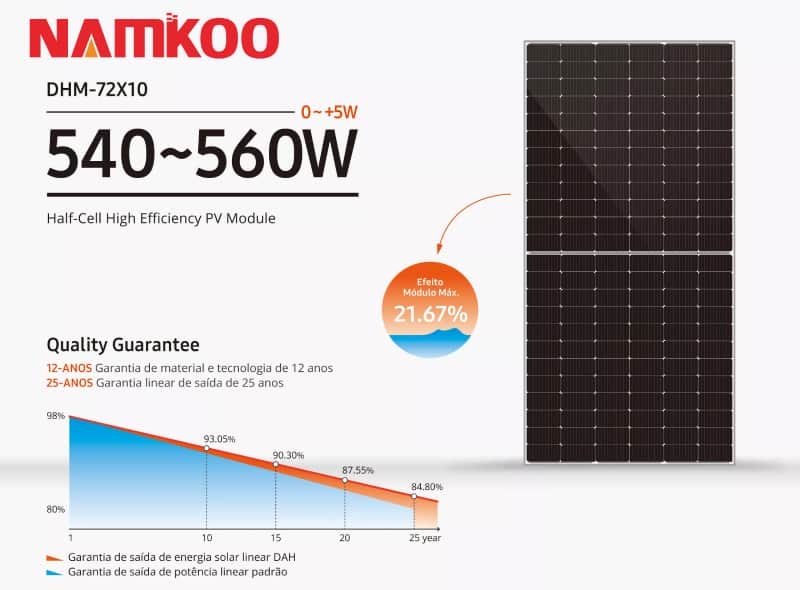

Solar Energy Panels 550 Watts High Efficient Mono Photovoltaic 540W 560W Black Solar Panels
  • Solar Energy Panels 550 Watts High Efficient Mono Photovoltaic 540W 560W Black Solar Panels
  • Solar Energy Panels 550 Watts High Efficient Mono Photovoltaic 540W 560W Black Solar Panels
  • Solar Energy Panels 550 Watts High Efficient Mono Photovoltaic 540W 560W Black Solar Panels
  • Solar Energy Panels 550 Watts High Efficient Mono Photovoltaic 540W 560W Black Solar Panels

Solar Energy Panels 550 Watts High Efficient Mono Photovoltaic 540W 560W Black Solar Panels

  • Cell size

    182mmx182mm
  • Type

    PERC, Half Cell, Bifacial, Double-glass, All Black
  • Panel Dimensions

    2279*1134*35mm
  • Panel Efficiency

    21.67%
  • Certificate

    TUV/CE/IEC/ISO/INMETRO
  • Warranty

    25 years
  • Product name

    Mono 530w 540w 550w Solar Panels
  • Solar cell

    A-grade
  • Junction Box

    IP68 Rated

Produt Details

25 years warranty A grade poly mono solar panels for off grid battery solar system

Mono solar panel

Maximum Power(Pmax) 540W 545W 550W 555W 560W
Open-circuit Voltage (Voc) 49.8V 50V 50.2V 50.4V 50.6V
Maximum Power Voltage(Vmp) 42V 42.2V 42.4V 42.6V 42.8V
Short-circuit Current (Isc) 13.66A 13.72A 13.78A 13.42A 13.90A
Maximum Power Current (Imp) 12.86A 12.91A 12.97A 13.03A 13.08A
Solar Panel Efficiency 21.13% 21.32% 21.52% 21.48% 21.67%
Power Tolerance 0~+5W
Standard Test Environment Irradiance 1000w/m2, Ambient temperature 25℃, Spectrum AM 1.5

solar panel

Solar Panel Glass:
*  High-transmittance and low reflection
*  Inspection:GB15763.2-2005.ISO9050
*  High solar transmittance
*  High mechanical strength
*  High flatness

solar panel glass

Solar Panel Cell:
*  High output-power: conversation efficiency is 18%-22%
*  High shunt-resistance: adapt the several environmental conditions.
*  Bypass diode minimizes the power drop by shade
*  Excellent low light effect
*  Low breakage rate

Frame:
*  Aluminium extrusion profile with prompt delivery
*  Available in customized surface finish
*  Excellent material for smooth and subtle edges
*  Extrusion for construction and other industrial purposes
*  Thickness variable according special request

Junction Box:
*  High current and voltage carrying capacity
*  Simple, quick and safe effective field assembly
*  IP 68 it can be used in the outdoor iron environment
*  Expansion connector are available for future requirement
*  Double permanent connection are adapted for all of the connecting.

Solar Projects:

solar panel project

Packing:

solar panel pack
