Solar Hybrid Inverter With Built In MPPT Charge Controller 300W-6KW

Input Voltage
12v
Output Voltage
220v
Output Current
30A
Output Frequency
50/60Hz
Output Type
Single, DUAL, Multiple
Size
420*320*122
Type
DC/AC Inverters
Inverter Efficiency
>85%
Warranty
1 years, 12 Months
Weight
30kg
Output waveform
Prue Sine Wave

Produt Details

300W-5KW foshan manufacture MPPT hybrid solar inverter

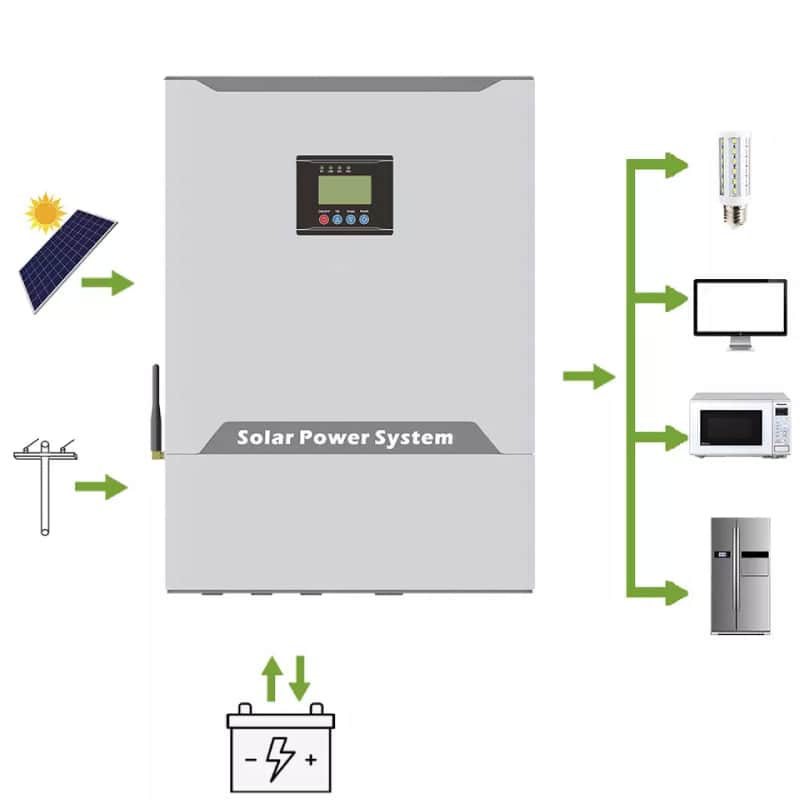

MPPT hybrid solar inverter

Product features:

● Double CPU intelligent control technology, performance excellence;
● The power mode / energy saving mode / battery mode can be set up,
Flexible application;
● Smart fan control, safe and reliable;
● The pure sine wave output, can adapt to various types of load;
● Wide input voltage range,high-precision output automatic voltage function.
● The LCD real-time display device parameters, running status at a glance;
● The output overload, short circuit protection, automatic protection and alarm;
● The intelligent MPPT solar controller, overcharge,overdischarge protection, current limiting charging, multiple protection

hybrid solar inverter

Model: MPPT		0.3-1KW		1.5-6KW
power rating(w)		300	700	1500	3000	5000
		500	1000	2000	4000	6000
Battery	rated voltage(VDC)	12/24		12/24/48	24/48	48
	Charge Current	10A MAX		30A MAX
	Battery Type	Can be set
Input	Voltage Range	85-138VAC/170-275VAC
	frequency	45-65Hz
Output	Voltage Range	110VAC/220VAC; ±5%( Inverter mode)
	frequency	50/60Hz±1%( Inverter mode)
	Output wave	Pure Sine Wave
	Change time	＜10ms(Typical load)
	Efficiency	＞85%（80% Resistive load）
	overload	110-120%/30S；＞160%/300ms；
	Protection function	Battery over-voltage and low-voltage protection, overload protection, short circuit protection, over-temperature protection
Solar Controller	MPPT Voltage Range	12VDC:15V~150VDC;24VDC:30V~150VDC;48VDC:60V~150VDC
	PV Power	12VDC-30A(400W); 24VDC-30A(800W)		12VDC-60A(800W); 24VDC-60A(1600W); 48VDC-60A(3200W)
	Rated charge current	30A(Max)		60A(Max)
	MPPT efficiency	≥99%
	Average charging voltage(lead acid battery	12V/14.2VDC;24V/28.4VDC;48V/56.8VDC
	Floating charge voltage	12V/13.75VDC;24V/27.5VDC;48V/55VDC
Operating ambient temperature		-15-+50℃
Storage ambient temperature		-20 - +50℃
Operating / storage environment		0-90% No Condensation
Dimensions:W * D * H (mm)		420320122		520420222
Packing size: W * D * H (mm)		535435172		635535252

Maintenance and maintenance:

●This series of products with little maintenance, battery only need to constantly maintain the charge to obtain life expectancy. In the same city electricity connection.
● If you do not use the equipment for a long period of time, it is recommended to charge it every 4-6 months. Under normal circumstances, the battery’s life will be 3-5 years, if found in poor condition, you must replace the battery early. When replacing the battery, it must be carried out by qualified personnel. Battery should not be individually replaced, the overall replacement should follow the battery supplier's instructions.
●Normal use, the battery every 4 to 6 months to be charged, discharge time, discharge to the shutdown charge, In the high temperature region, the battery charge every two months, discharge time.
●Before replacing the battery, turn off the device and disconnect it from the mains, and close the battery switch. Take off metal objects such as rings and watches. Use insulated handle and screwdriver, do not put tools or other metal objects on the battery pack.
●When connecting the battery cable, it is normal for small sparks to appear in the joint, which will not cause any harm to the personal safety and the equipment. Do not charge the battery positive and negative, very short or reverse connection.
