Factory sell 10 kW on grid solar power system with Growatt inverter

Model Number
10KW On-Grid
Application
Commercial, Industrial And Commercial Projects / Residential Projects.
Solar Panel Type
Monocrystalline Silicon, Polycrystalline Silicon
Battery Type
Lead-Acid, Lithium Ion, Lead Acid / Lithium.
Controller Type
MPPT
Mounting Type
Roof Mounting, Flat Roof / Sloping / Ground.
Load Power (W)
10KW, Design And Build.
Output Voltage (V)
400VAC, 230V/400VAC
Output Frequency
50Hz/60Hz
Work Time (H)
24 Hours
Certificate
CE TUV, CE/TUV /ISO/INMETRO

Produt Details

10000 w energy system on grid 1kw solar panels system

10kw on grid solar

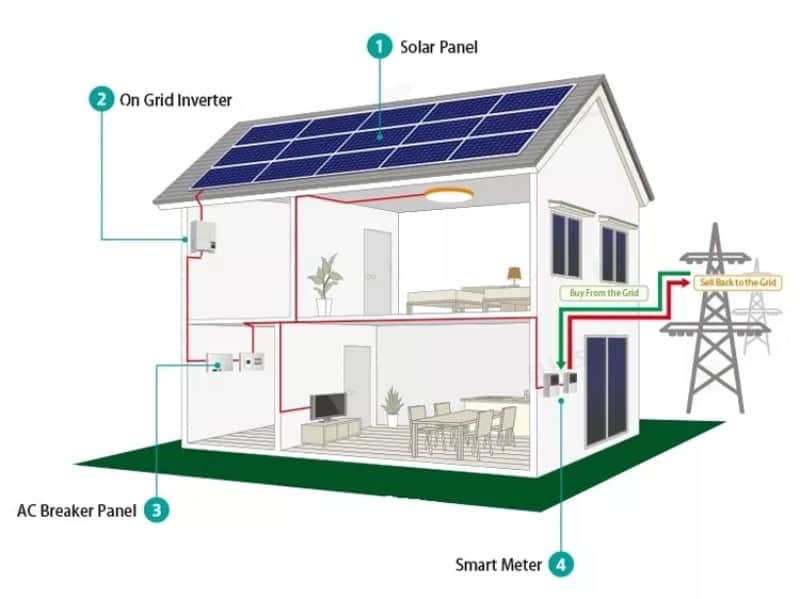

What is on grid system?
Grid-tied, on-grid, utility-interactive, grid intertie and grid backfeeding are all terms used to describe the same concept - a solar system that is connected to the utility power grid.

The grid tied solar system must be connected to the public power grid. It is mainly composed of solar panels and inverters. The solar panels send out electricity directly through the inverter to convert into alternating current and supply power to household appliances. When solar power fails to meet household appliances, it is replenished automatically from the grid. And this whole process is intelligent control, does not need the human to open or close.

10kw on grid solar system

10kw solar system

10kW on grid/ grid tied solar system including:
Item	Model	Description	Quantity
1	Solar panel	500W monocrystalline solar panel	20 PCS
2	On grid solar inverter	Growatt 10kW on grid solar inverter	1 PC
3	WiFi module	System WiFi monitoring	1 PC
4	Mounting bracket	Roof top or ground mounting	1 set
5	Solar cables	4 mm² solar cables	100m black 100m red
6	Cable connector	MC4 solar cable connector	10 sets

MONO/POLY Solar Panel:
*Positive power tolerance:0~+5w 100%
*EL Double-inspection ensures modules are defects free
*Modules Binned by Current to improve system performance
*Potential inducedDegradation(PID) Resistant

10kw On Grid Inverter:
*Max. DC Voltage up to 1000V
* Max efficiency 98.4%
*Compact design
*Multi MPPT controller
*Naturalcooling, fanless design
* High power density, offer lighter and easy installation
*Flexible communication connection, support RF, WiFi, Ethernet
*Comprehensive Growatt warranty program

Mounting structure:
> Residential Roof(Pitched Roof)
> Commercial Roof(Flat roof&workshop roof)
> Ground Solar Mounting system
> Vertical wall solar mounting system
> All aluminum structure solar mounting system
> Car parking solar mounting system.

Project Engineering：

on grid system
