High quality three phase off grid 30kw solar panel system 100 kw with battery storage system
-
Battery Type
Lead Acid/Lithium Battery -
Inverter
30/50/100kW Hybrid Inverter -
Solar Panel
550w 585w 700w Solar Panel -
Monitoring
Wifi/GPRS Monitoring System -
Load Power (W)
30/50/100kW -
Nominal Voltage
220/380/480v Three Phase -
Rated Frequency
50/60Hz -
Application
Residential/ Commercial/Industrial Use -
Mounting Brackets
Flat/Pitched Roof /Ground
Produt Details
Off Grid Solar Energy System 100kw Solar System With Deye Inverter
| Item | Model | Description | 30KW | 50KW | 100kW |
| 1 | Solar Panel | Mono Perc 455W Solar Panel | 68pcs | 119pcs | 238pcs |
| 2 | Combiner Box | Customized | 1 pc | 1 pc | 1 pc |
| 3 | Lithium Battery or Lead Acid Battery | lithium battery racks, BMS and battery cables | 1 set 30kwh 307.2V 105AH | 1set 53.76kwh 512V 105AH | 1 set104.96kwh 512V 205AH |
| 4 | Hybrid Inverter | 230/380VAC 50HZ built in MPPT controller | 1 pc 30KW grid hybrid | 50KW grid hybrid inverter | 1 pc 100KW grid hybrid inverter |
| 5 | Mounting Support | Roof/Ground | 1 set | 1 set | 1 set |
| 6 | Cable | 4mm² PV cable | 500m | 700m | 1200m |
| 7 | Connector | Solar Connector | 36pairs | 54pairs | 70pairs |
| 8 | Tools Bag | Solar Installation tools | 1 set | 1 set | 1 set |

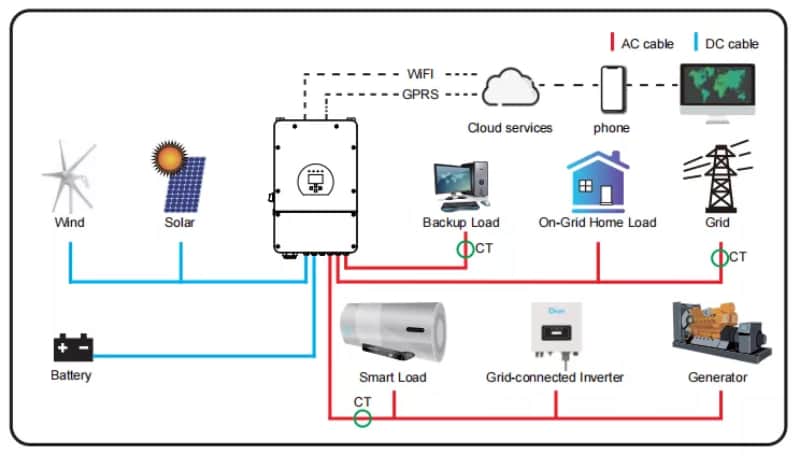

Hybrid energy storage solar system is a solar system, suitable for a place where is no grid network or grid power is not stable.
This solar can be described as off-grid solar system with utility backup power.
Solar Panel:
Half-Chip Mono PERC Module
- Anti-reflective glass
-22% higher efficiency by tier 1 brand of batteries
-120N tensile strength frame (black/silver optional)
-Waterproof label
- Junction box, IP68 water resistance
-PV connector, MC4 4mm qualified cable
Three Phase Deye Hybrid Solar Inverter
Model：SUN-8/10/12K-SG04LP3
-Max.charging/discharging current of 240A
-Frequency droop control,Max.16pcs parallel
-Each phase Max. output up to 50% rated power
-48V low voltage battery.transformer isolation design
Power Wall Battery:
1、All in one mould design and production, easy to install.
2、With longer span life LiFePO 4 battery, over 12 years lifespan ensure the whole set products’life span.
3、Dustproof structure d esign, DC output, safe and reliable.
4、Integrated packaging, safe and convenient to transport.
5、Wide voltage input, when unexpected high voltage input, can effectively block the high voltage, so that the BMS of the battery will not be broken down, greatly reducing the risk of thermal runaway combustion of lithium battery.
6、Compact appearance design, extremely compressed product thickness, greatly reducing space occupancy.
7、High quality aluminium magnesium alloy, anti-corrosion,substantial, durable, artistic, practical.
8、With its own wall hanging load-bearing support, the load-bear-ing effect is good.
9、Integrated charging and storage, reduce wiring, installation and other work, and facilitate user operation.
Packing:
Project:
